Prototype

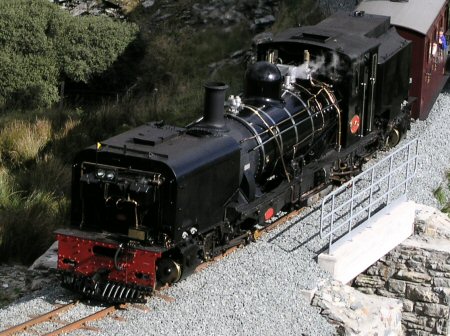

The Model is based on a batch of NGG16 locomotives built by
Beyer Peacock in 1958, for service in South Africa. More specifically it is
based on locomotives No 138 and 143, which were purchased for service on the
Welsh Highland Railway, and have been running in Wales since 1997. These
locomotives were the last batch of Garrats built by Beyer Peacock (the last
batch of this class was built later by Hunslett). They have received many
modifications since the class was first designed the most important
being conversion to oil firing (from coal), and the removal of most of the live
steam valves from the cab to a large external steam manifold mounted on top of
the boiler immediately in front of the cab. This latter modification makes for
a great improvement in crew safety and comfort. There have been other minor
modifications to fit the locomotives for use on the WHR.

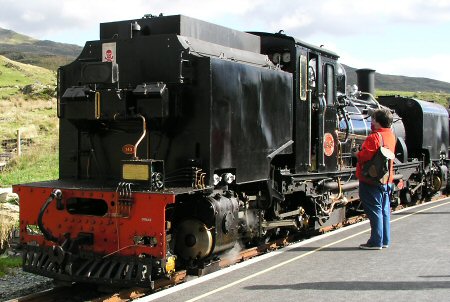

The model is based on 138 and 143 as running until the winter of
2003/2004. 138 has now received a modified fuel oil tank which reduces the
height of the rear tank unit considerably. 143 (to date) retains the original
fuel oil tank.
138 is painted green and bears the nameplate
MILLENIUM in recognition of the large grant from the Millennium
Fund which helped in the rebuilding of the WHR to its current (temporary)
southern terminus. 143 is painted Black and bears no nameplates.
Model
The model is built to a scale of 1/12. No attempt
has been made to reproduce the colour scheme of either 138 or 143. Most of my
Meccano is mid-70s Binns Road, so the predominant colour is Yellow. I
have used some red where I think it adds artistic effect.
As far as possible standard Meccano parts have been used
there are a few extensions and specials mainly in the valve gear.
The model is powered by two 6v electric motors with integral
27:1 reduction gear. The motors drive the centre driving axles on each engine
unit via helical gears. This results in a scale walking speed
movement of the model.
The reversing gear of each engine unit is operated by a Meccano
MO motor driving a screw-jack via a reduction of approx 150:1. (This
independent operation of the two reversing gears is because I have
sadly- found no way of modelling the reversing gear linkage which runs from one
end of the locomotive to the other; but they will be electrically
synchronised). |
